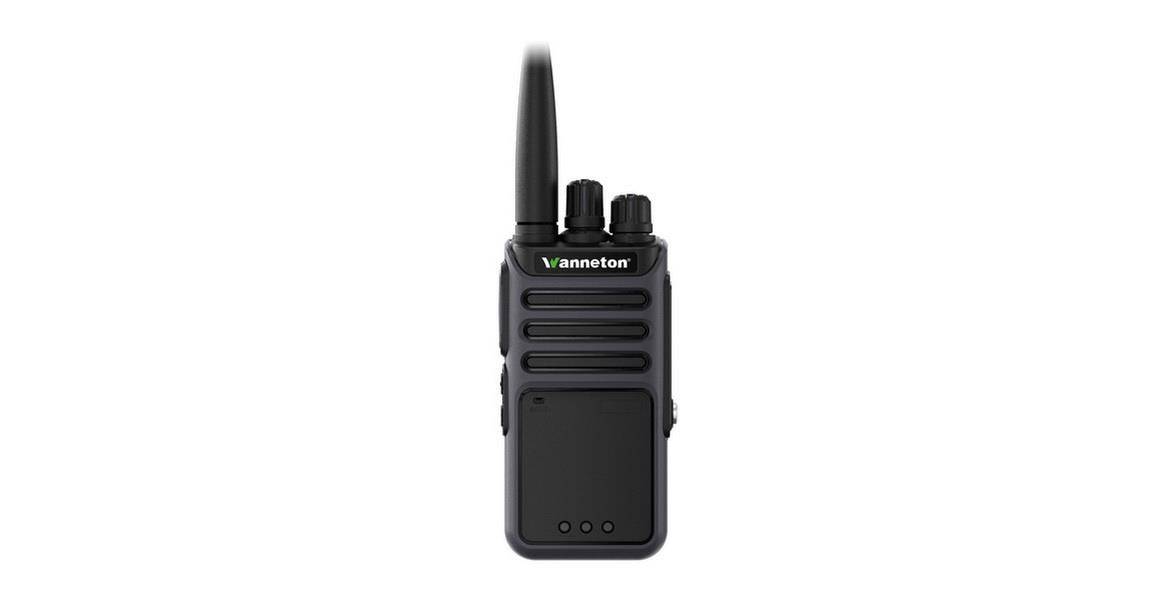

      F520B



                        Feature：IP68 waterproofFlashing lightAlarmWireless replicationReduce noise Frequency decodingUHF 400–520MHZ TYPE-C chargingCTCSS, DCS standard mute soundComputer programming password reading and writing frequencyChinese/English language reporting number16 StorageTime limited launch Power saving fun…
















      Introduction:



                            Feature：

IP68 waterproof

Flashing light

Alarm

Wireless replication

Reduce noise

Frequency decoding

UHF 400–520MHZ

TYPE-C charging

CTCSS, DCS standard mute sound

Computer programming password reading and writing frequency

Chinese/English language reporting number

16 Storage

Time limited launch

Power saving function

Special mute sound

VOX

Non standard mute function

scanning function

Interference function

High/Low voltage warning

High/Low Power

Wide/Narrow band







      Parameters:



                            GENERAL：

Frequency： UHF:400-520MHz

Channel capacity：16

Channel space：25/12.5KHZ

Input voltage：7.4vdc

Standby：≤ 20mA

Receiver：≤ 450mA

Transmitterter：≤ 1.5A @High power,650mA@Low power

Frequency stability：±2.5ppm

Work temperature：-20℃ to +60℃

Antenna impedance：50Ω

Size：112*54*30mm



TRANSMITTER：

Transmitter output power：≤5W

Emission Current：≤1500 mA

Spurious emission：≤7.5uW

SNR：≥-45dB

Radio distortion：≤5%

subaudio frequency（wide band）：0.7±0.1KHz

Adjacent Channel Power：≤-65dB

modulation sensitivity：8~12mV



RECEIVER：

Receiver sensitivity：-122dBm (12dB SINAD)

Channel selectivity（wide band）      ：≥55dB

Intermodulation（wide band）：≥55dB

conducted spurious emission：≤-57dB@25KHz,≤-57dB@12.5KHz

SNR：≥45dB@25KHz,≥40dB@12.5KHz

Radio power：≥350mW

Radio distortion：<10%

Receiving Current：≤450mA
