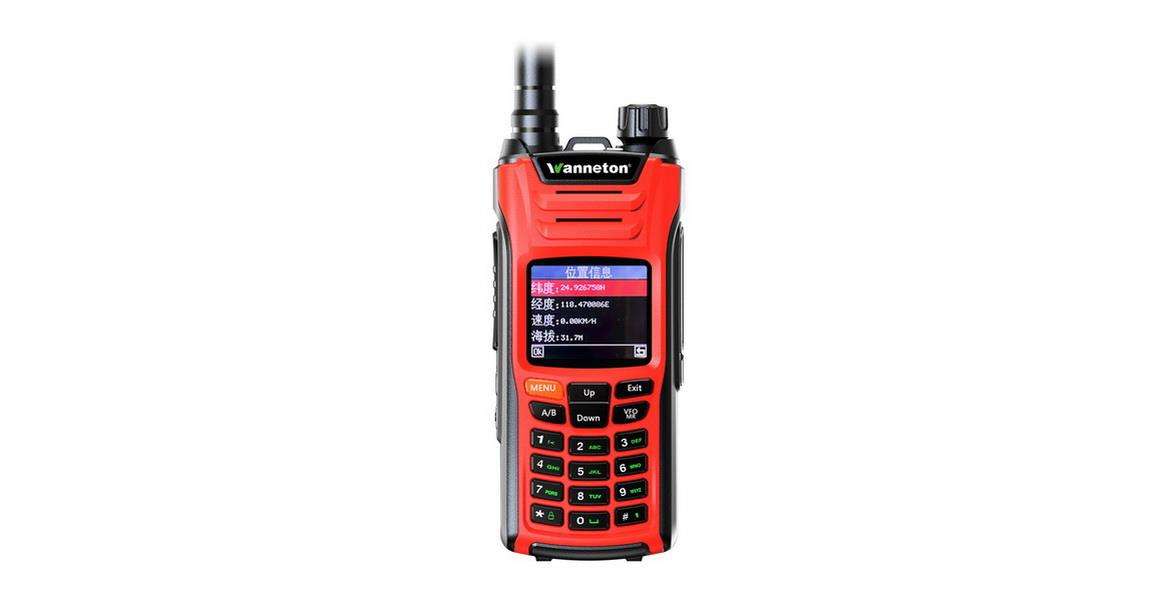

      UV8F



                        FeatureGPSAltitude：Distance between both partiesOne click decodingChinese/English inputSix frequency both optionsFrequency：123-174MHZ,175-220MHZ;230-250MHZ,330-350MHZ;350-400MHZ,400-520MHZ;999 Storage50 Groups CTCSS/105 Groups DCSAuto power-savingComputer programmingLow voltage warningAuto power-sa…
















      Introduction:



                            Feature

GPS

Altitude：

Distance between both parties

One click decoding

Chinese/English input

Six frequency both options

Frequency：123-174MHZ,175-220MHZ;

230-250MHZ,330-350MHZ;

350-400MHZ,400-520MHZ;

999 Storage

50 Groups CTCSS/105 Groups DCS

Auto power-saving

Computer programming

Low voltage warning

Auto power-saving

Non-standard sub sound

VOX

Launch timeout limit TOT

Scaning/Sweep frequency function

Special signaling(frequency hopping)

Display individual names in both Chinese and English







      Parameters:



                            GENERAL：

Frequency：123MHZ-520MHZ

Storage：999

Channel space：25/12.5KHZ

Input voltage：7.4V DC

Battery capacity：4800mAh

Battery life：About 14hours

Standby：≤ 65mA

Receiver：≤ 450mA

Transmitter：≤ 1.8A @Hi power, 650mA@low

Frequency stability：±2.5ppm

Frequency stability：-30℃ to +60℃

Antenna impedance：50Ω

Size：122*65.5*38mm

Weight：252g



TRANSMITTER：

Transmissiom output power：8W

Modulation：16K0F3E@25KHz, 11K0F3E@12.5KHz

Spurious emission：-36dBm＜1GHz, -30dBm＞1GHz

SNR：45dB@25KHz, 40dB@12.5KHz

Radio distortion：≤5%

Modulation limited：±5.0KHz@25KHz, ±2.5KHz@12.5KHz

Adjacent Channel Power：70dB@25KHz, 60dB@12.5KHz

Radio response：+1 ~3dB



RECEIVER：

Receiver sensitivity：0.25uV（12dB SINAD)

Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz

Adjacent channel selectivity：≥60dB@25KHz，≥55dB@12.5KHz

conducted spurious emission：≤５7dB@25KHz，≤-57dB@12.5KHz

SNR：≥45dB@25KHz，≥40dB@12.5KHz

Audio output power： 1W@16 ohms

Radio distortion： ≤5%

Radio response： +1 ~ -3dB
